How Do High-Density Terminal Boxes Solve Space-Constrained Installation Challenges?

        Today, as industrial equipment is evolving towards miniaturization and integration, how to achieve efficient and reliable electrical connections within a limited space has become a common challenge faced by enterprises. CMZG®, with its high-density terminal box series products, offers breakthrough solutions for space-constrained scenarios through innovative design. Covering core products such as 3 Poles Terminal Block, 40A Terminal Connector, Oven Roaster Baker Terminal Block (special terminal for baking ovens), etc. Redefined the standard for compact electrical connections.

Resolving the contradiction between space and performance

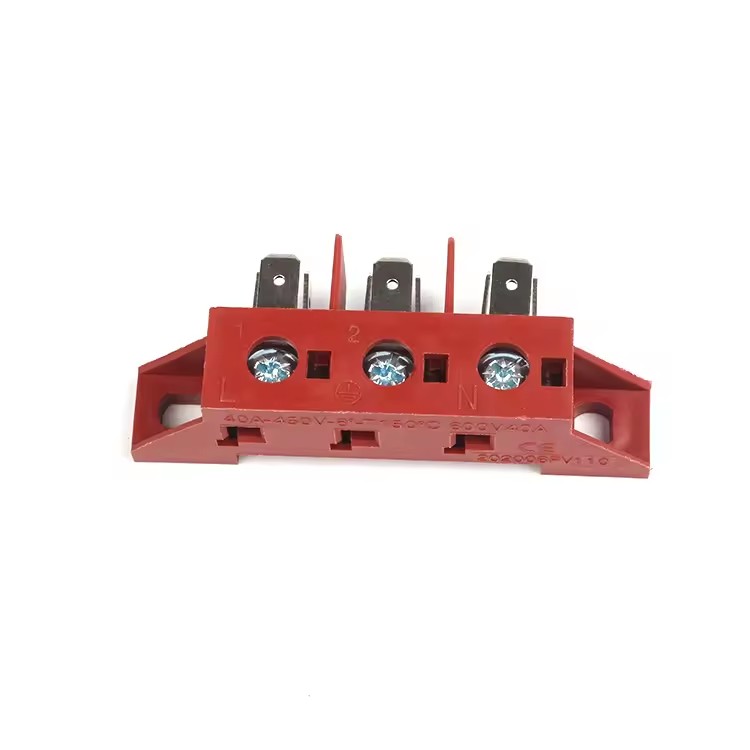

        Traditional terminal boxes are often large in size to meet the connection requirements of multiple lines and are difficult to layout inside narrow control cabinets or equipment. The CMZG® high-density terminal box, through modular integrated design, compresses multiple functional units into a smaller volume. For example, the 3 Poles Terminal Block adopts a three-dimensional layout structure to achieve the safe connection of three-phase circuits within only 60% of the space of traditional products. At the same time, it maintains an IP65 protection level to ensure stable operation in damp and dusty environments.

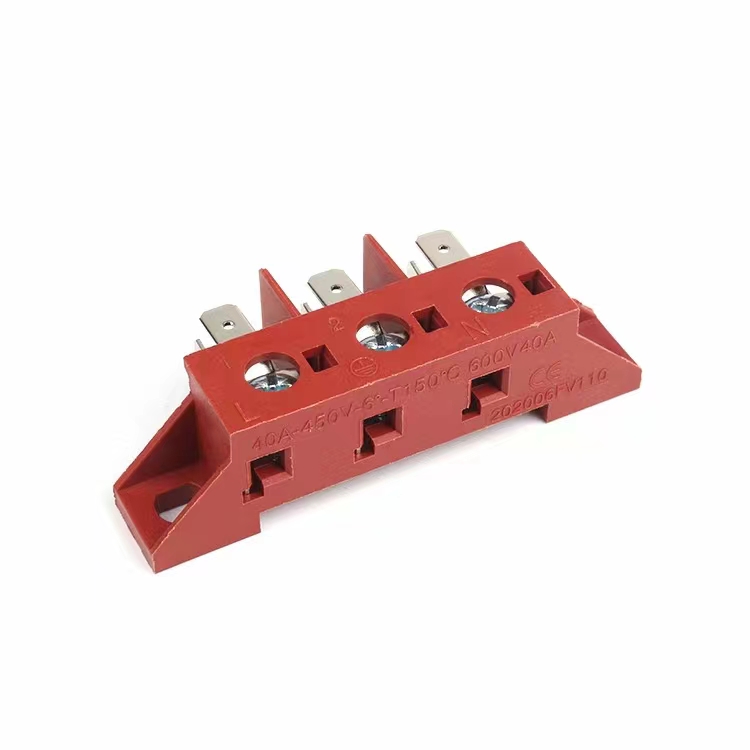

        For high-power application scenarios, the 40A Terminal Connector, by optimizing the conductive materials and heat dissipation structure, supports 40A continuous current ina compact size with a diameter of 5 centimeters. It has been successfully applied in space-sensitive devices such as new energy vehicle charging piles and photovoltaic inverters. A certain photovoltaic enterprise has reported that after adopting this connector, the internal circuit layout efficiency of a single inverter has increased by 35%, significantly reducing installation and maintenance costs.

From general to scenario-based customization

        CMZG® is well aware of the differentiated demands for terminal boxes in various industries. Take the baking equipment as an example. The Oven Roaster Baker Terminal Block is specially designed for high-temperature environments. It adopts heat-resistant ceramic insulators and a stainless steel casing, which can withstand a high temperature of 250℃ for a long time. Meanwhile, through the compact wiring structure, it helps commercial oven manufacturers reduce the thickness of the control panel by 40%. Open up a new path for the miniaturization of equipment.

        We once received an urgent request from a chain baking brand. They hoped to upgrade the intelligent control system of their existing oven models, but were limited by the internal space. The product manager of CMZG® recalled, "By customizing the pin layout of the Oven Roaster Baker Terminal Block, the transformation was ultimately completed without affecting heat dissipation. As a result, the customer saved millions of yuan in equipment iteration costs."

Making Connections Smarter

        High density is just the starting point. Our goal is to make the terminal box the nerve endings of the intelligent industry. The R&D director of CMZG® disclosed at a recent industry forum that the team is developing the next-generation product with built-in condition monitoring functions. By integrating temperature sensors and wireless communication modules, it aims to achieve real-time feedback on the health status of connection points. Imagine that when the terminal box can proactively warn of poor contact or overheating risks, the equipment failure rate will be significantly reduced. This will be a revolutionary breakthrough in preventive maintenance.

        Currently, CMZG® has initiated joint tests with multiple industrial automation enterprises, planning to integrate high-density terminal boxes with edge computing technology to build an "self-sensing and self-diagnosing" electrical connection ecosystem.

From Space Anxiety to Layout Freedom

        In a certain intelligent factory renovation project, CMZG® 's high-density solution helped the client reduce the volume of the control cabinet to one-third of the original design, reserving sufficient space for the newly added sensors and actuators. In the past, for wiring, we had to sacrifice the space of other functional areas of the equipment. The project leader stated, "Not only has the space issue been resolved now, but the quick-plug design of the CMZG® terminal box has also increased the equipment debugging efficiency by 50%."

        With the acceleration of the Industry 4.0 process, CMZG® is using high-density terminal boxes as a fulcrum to help the manufacturing industry break through physical space limitations and transform towards more efficient and flexible production models. Just as the corporate vision states: "A good connection should make people forget the existence of space."
