Home > Products > Micro Switch > Fall Protective Micro Switch
Fall Protective Micro Switch
  • Fall Protective Micro SwitchFall Protective Micro Switch
  • Fall Protective Micro SwitchFall Protective Micro Switch

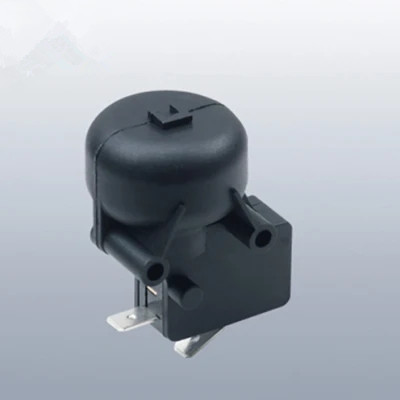

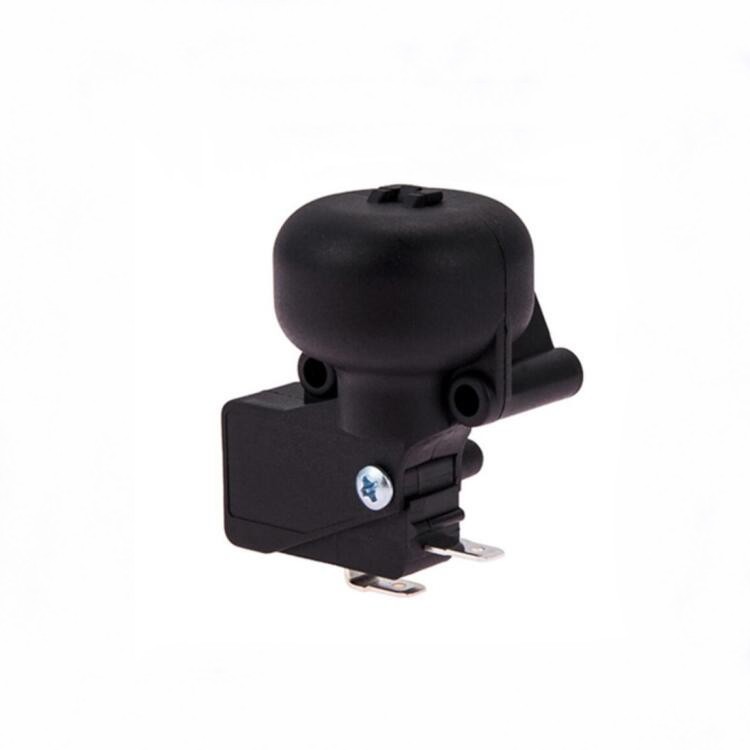

Fall Protective Micro Switch

CHIMAI is a well established manufacturer and supplier of high quality fall protective micro switch in China. Our fall protective micro switch are crafted using high-grade materials, ensuring exceptional durability and reliability. We understand the importance of providing reliable and long-lasting products to our clients, and that is why we have established a rigorous quality control process to ensure that our products meet the highest standards. We offer competitive prices and have a wide distribution network that covers major markets in Europe and the Middle East. Welcome new and old customers to continue to cooperate with us to create a better future!

Send Inquiry

Product Description

CMZG® stands as a renowned manufacturer in China, dedicated to offering high-quality fall protective micro switch. With years of experience in the production of these switches, CHIMAI has gained expertise in delivering a wide range of options to meet diverse customer needs.

A fall protective micro switch, also known as a snap action switch, is a type of switch mechanism that is commonly used in various applications where a precise and reliable mechanical switch is required. A fall protective micro switch consists of a small spring-loaded lever with a contact mechanism at the end, which momentarily opens or closes an electrical circuit as the lever is moved. The switch is triggered by a small amount of force, making it sensitive to even small changes in pressure or position.

CHIMAI Fall Protective Micro Switch Working Principle

- As the main body is standing, Fall-protective switch's sphere with its gravity is on the lever of switch, so that Micro switch can work with load.

- When the main body is inclining, Fall-protective switch's sphere with its gravity will off the lever of switch and Micro switch can't work without load.

CHIMAI Fall Protective Micro Switch Specification

Action Angle:30-50°;Reset Angle:>15°;The Error of Action Angle:±5°
Operating Frequency Mechanical 60 cycles/min;Electrical 6 cycles/min
Insulation Resistance 100 MΩ(500VDC)
Life Expectancy

Mechnical>=5000000 cycles

Electrical>=10000 cycles

Degree of protection IEC IP40
Degree of protection against electric shock
Class I
Origin China

The Fall Protective Micro Switch have a high safety factor, long electrical life, high rated current, simple transmission, and a reasonable angle for switching on and off when tilted. It is an advanced product among similar products internationally, and is widely selected by customers at home and abroad. It is suitable for use in electric heaters and other electrical products that require a anti-tilt protection device

CHIMAI Fall Protective Micro Switch FAQ

Q: Are you manufacturer or just dealer?

We're manufacturer, we do produce all products by ourself. Welcome to visit our plant at any time.

Q: Where Can we get the datasheets of the products?

Each product has the specification, Please contact with our sales if you need.

Q: How about the after-sale service?

We offer 12 months for every products we sold. If you meet any problems after sales, Please contact us freely,we'll help solving the problems within 24 hours.

Q: How long is the lead time?

Normally we keep stock for most products, the lead time is 5~7 days as soon as the payment is released.
For customized products, it takes longer.

Q:How to proceed an order for switch?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

CHIMAI Fall Protective Micro Switch Application
